Solenoid Valves in Electronic Mixers

Electronic Mixers

solenoid valves in electronic mixers; electronic mixers

Equipment for supplying water without hand contact.
By moving the hands in the infrared area of taps or approaching shower and urinal systems, water will flow. The use of electronic mixers is compulsory in places requiring special precautions, such as hospitals and public places.

Furthermore, this application will get a reduction of consumptions due to the fact that the water supply stops automatically a few seconds after use.

Construction Diagram of the System

solenoid valves in electronic mixers; construction diagram

Solenoid Valve Application

View our full range of Solenoid Valves

The system is based on an optical sensor (photocell) producing an infrared beam of light.
When the beam is interrupted by the presence of a body the sensor sends an electric impulse to the control unit, which electrically operates the two solenoid valves.

The valves are connected to the hydraulic system and deliver hot and cold water. Thanks to a mixer, the water temperature is properly regulated.

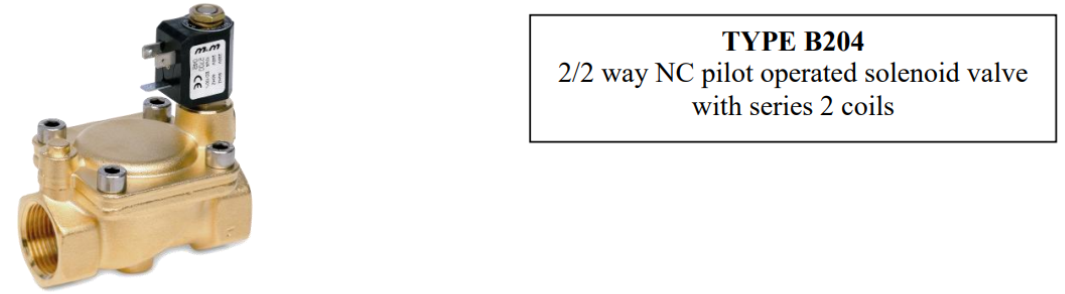

Solenoid Valves Used

solenoid valves in electronic mixers; valves used

You can buy M&M International Solenoid Valves online through the V-Flow Solutions web shop

A remarkable flow rate is needed for this application. Therefore the choice of a pilot operated solenoid valve in place of a direct-acting valve is justified by a very large nominal diameter ( 13 mm).

In addition, the recommended valve undergoes a Niploy coating process to withstand outdoor deterioration caused by the atmosphere in places like urinals.

The recommended valve is more competitive than stainless steel valves of our competitors.
